European-style cable distribution box DFW
+
  • European-style cable distribution box DFW
  • Product Description
  • Overview

    European-style cable branching boxes are cable-based engineering equipment widely used in power distribution systems in recent years. Their main features include double-sided doors, the use of insulating sleeves as connecting busbars, and significant advantages such as small length, clear cable arrangement, and no large-span crossing required for three-core cables. Generally, 630A rated current bolt-fixed cable connectors are used. The cable connectors used comply with the DIN47636 standard.

    Environmental Conditions of Use

    Ambient temperature: Maximum temperature: +40℃, Minimum temperature -30℃

    ● Wind speed: Equivalent to 34m/s (not exceeding 700Pa)

    ● Humidity: Daily average relative humidity not exceeding 95%, monthly average relative humidity not exceeding 95%.

    ● Anti-vibration: Horizontal acceleration not exceeding 0.4m/s2, vertical acceleration not exceeding 0.15m/s2

    ● Installation location inclination: Not exceeding 3°

    ● Installation environment: The surrounding air should not be significantly polluted by corrosive, flammable gases, water vapor, etc., and the installation location should be free of violent vibrations

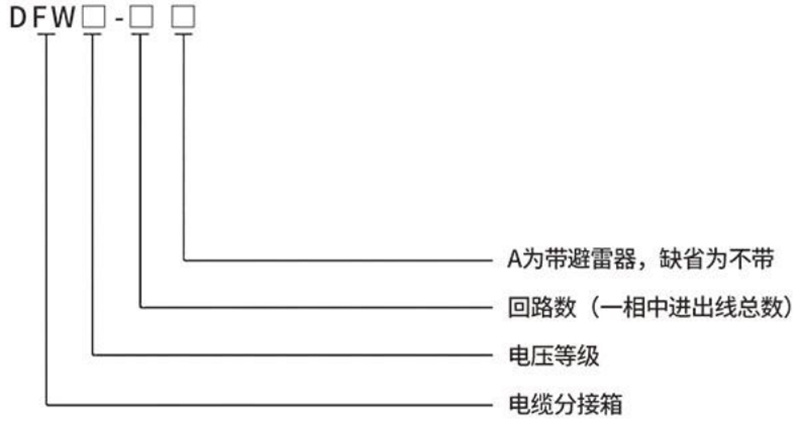

    Product Model and Definition

European-style cable distribution box DFW

The European cable branch box has been widely used in recent years as cable engineering equipment in power distribution networks. Its main features are bi-directional opening and using insulated bushings as connecting busbars.



Share Now

  • Product Description
  • Overview

    European-style cable branching boxes are cable-based engineering equipment widely used in power distribution systems in recent years. Their main features include double-sided doors, the use of insulating sleeves as connecting busbars, and significant advantages such as small length, clear cable arrangement, and no large-span crossing required for three-core cables. Generally, 630A rated current bolt-fixed cable connectors are used. The cable connectors used comply with the DIN47636 standard.

    Environmental Conditions of Use

    Ambient temperature: Maximum temperature: +40℃, Minimum temperature -30℃

    ● Wind speed: Equivalent to 34m/s (not exceeding 700Pa)

    ● Humidity: Daily average relative humidity not exceeding 95%, monthly average relative humidity not exceeding 95%.

    ● Anti-vibration: Horizontal acceleration not exceeding 0.4m/s2, vertical acceleration not exceeding 0.15m/s2

    ● Installation location inclination: Not exceeding 3°

    ● Installation environment: The surrounding air should not be significantly polluted by corrosive, flammable gases, water vapor, etc., and the installation location should be free of violent vibrations

    Product Model and Definition
